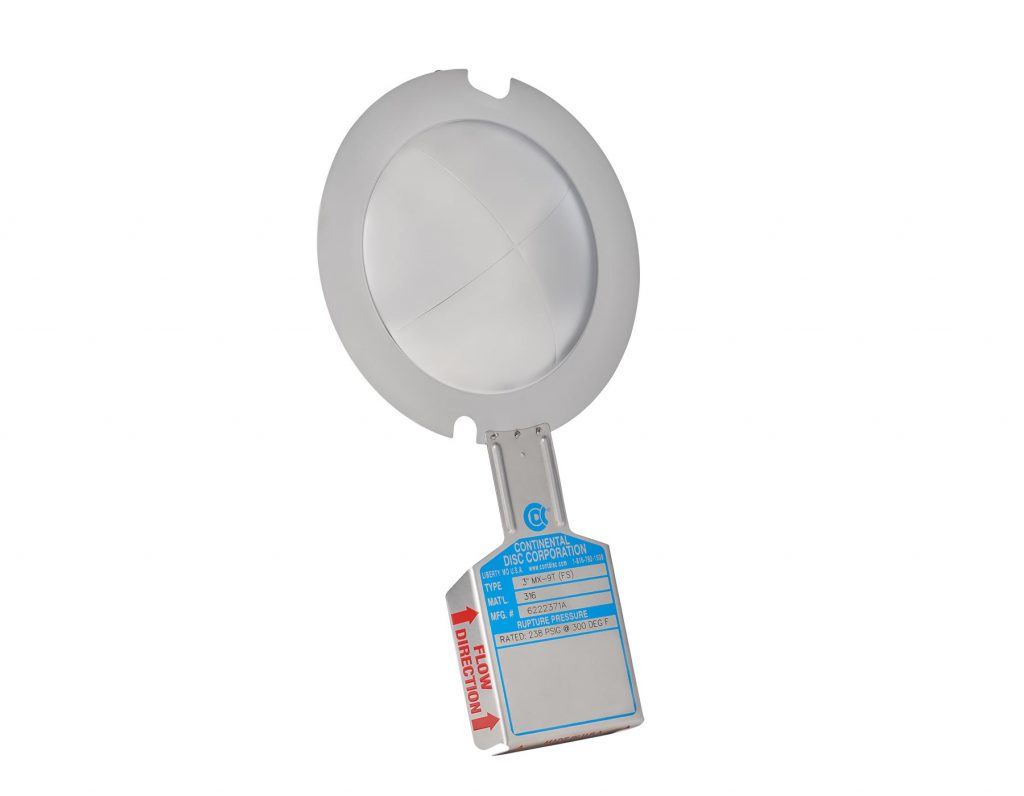

MICRO X™ 爆破片

MICRO X爆破片是一种平面密封十字预刻痕式正拱型爆破片,四瓣式完全打开,无碎片。预刻痕位于出口侧,确保爆破片入口侧光滑,防止腐蚀性介质或易结晶、易聚积介质对刻痕产生影响。

公称尺寸范围:1英寸~ 36英寸(25毫米~ 900毫米)
爆破压力范围:15 psig ~ 3600 psig(1.03 barg ~ 248 barg)
最大推荐工作压力比:爆破片额定(标定)爆破压力的80%
密封面:平面
适用介质:气体或液体
是否与BDI警报系统兼容:是
是否能够提供ASME钢印:是
可为未标明或未显示的材料提供特殊设计。联系我们以获取更多信息。。
请联系我们了解更多信息。

Industry Applications

Oil & Gas (Petrochemical)
Oil & Gas (Petrochemical)
Oil & Gas (Petrochemical)

The hydrocarbon industries require cost-effective system protection with a special focus on reducing fugitive emissions. Our catalog of configurations, materials, burst ratings and sizes make our rupture discs the right choice for these operations.
